Introduction
HV HRC Fuses links are used as protection devices in the medium voltage switchgear and equipments against over current and short circuits
ESWARI (ANAND) fuses are used for protection of power distribution power equipments such as
Potential transformer.
Distribution transformer.
High voltage motors .
High voltage capacitors and.
Cables,general circuits etc.
ESWARI (ANAND) fuses are designed & manufactured to suit any type installation in indoor & outdoor.
Salient Features
The company pioneering the HRC fuses technology is one of the leading manufacturers of high voltage fuses with widest range of products,designes and manufactured to offer protection solution to various applications .
The Most significant features of ESWARI (ANAND) HV fuses link are
High breaking capacity .
Low power loss & Temperature rise.
Operational reliability & safety .
Non deterioration & free from ageing .
Very less arc voltage .
Standards
IEC 60282–1 High Voltage current limiting fuses .
Din-43625-High voltage fuses,rated voltage 3.6 upto 36 kv fuse links
Bs-2692-High voltage current limiting fuses.
VDE-0670T4-High voltage fuses "current limiting fuses".
IEC-60787-selection of current limiting fuses for transformer circuits.
IEC-60644-Requirement for HV fuse links for motor circuits
IEC-69549-High Vcoltage fuses for ecternal protection of power capacitors.
IEC-60420-High Voltage alternating current switch fuse combination for voltage up to 52 Kv.
VT Protection Fuses
transients and to ensure protection against any type of faults including inter turn shorts turn shorts arising from the potential transformer these fuse links are used as VT primary protection fuses in order to quickly limit the fault and isolate the vt from the supply source.

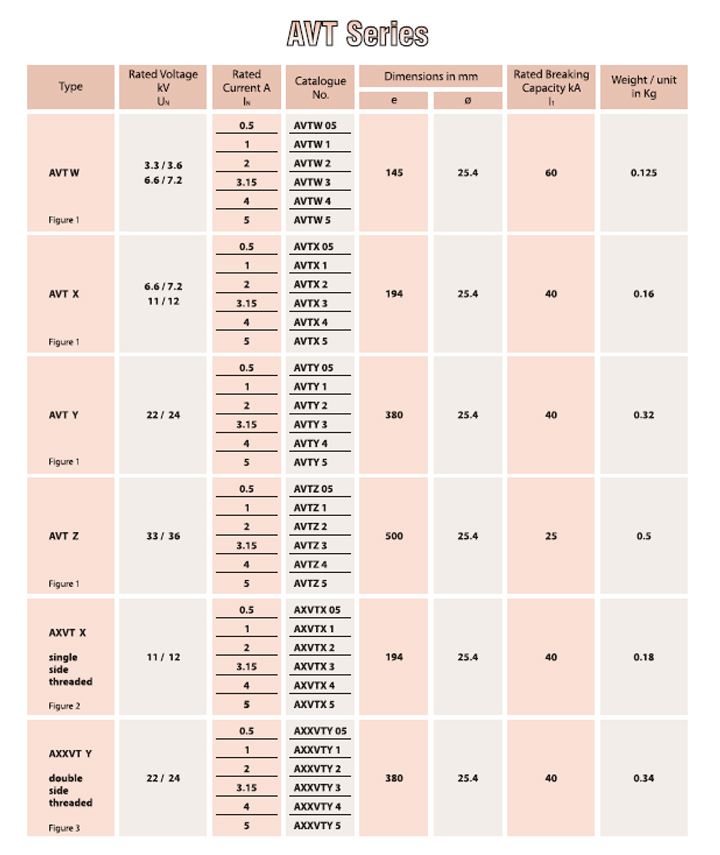

Ratting : 3.3 kv to 36 kv
AMPS : 0.5 to 6.3 A
Fuse links with stud / screw type connections are also available.Custom fixing arrangements can also be provided .

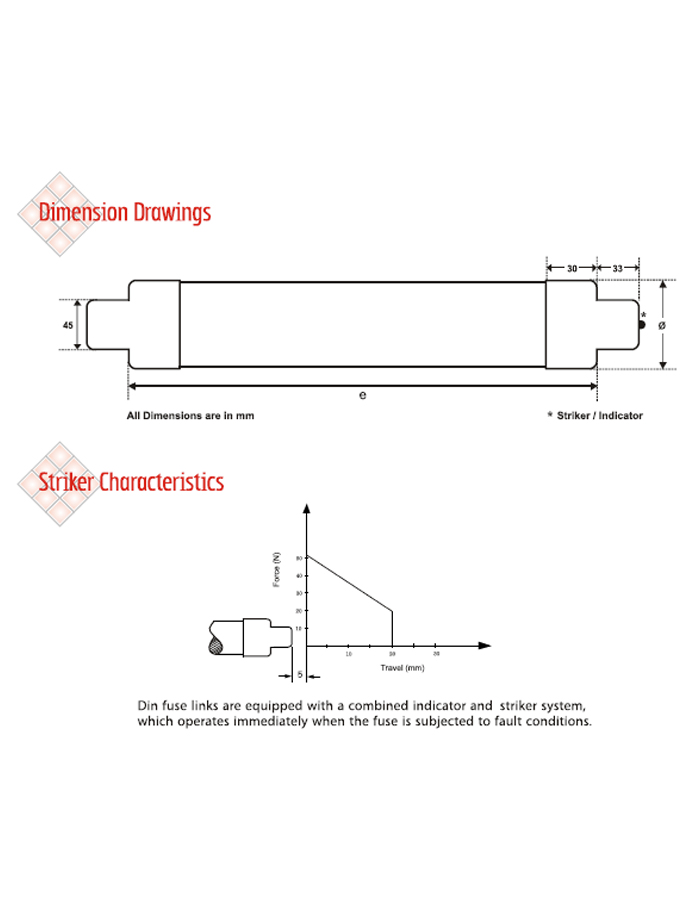

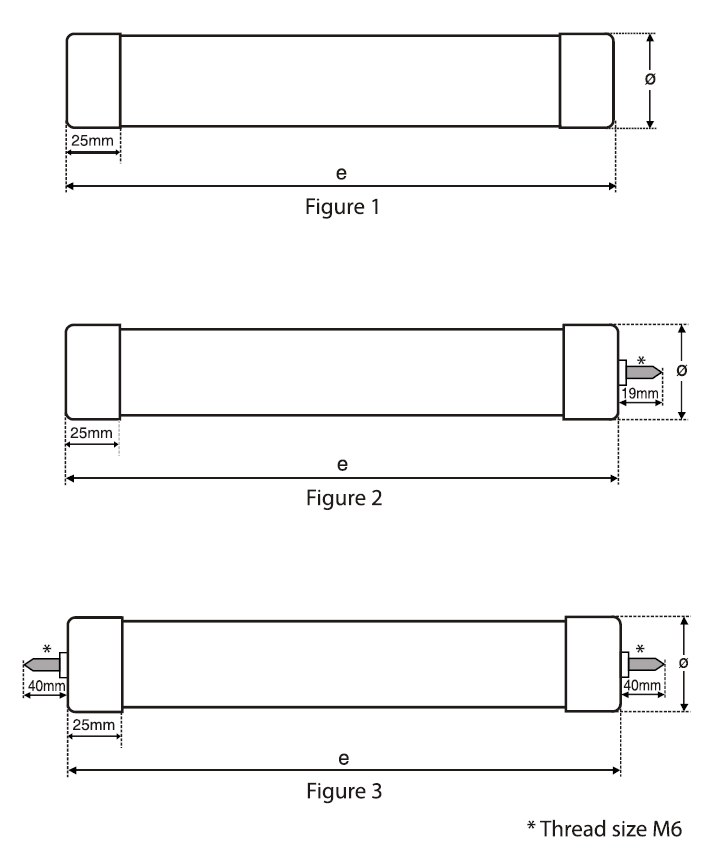

Dimension Drawings

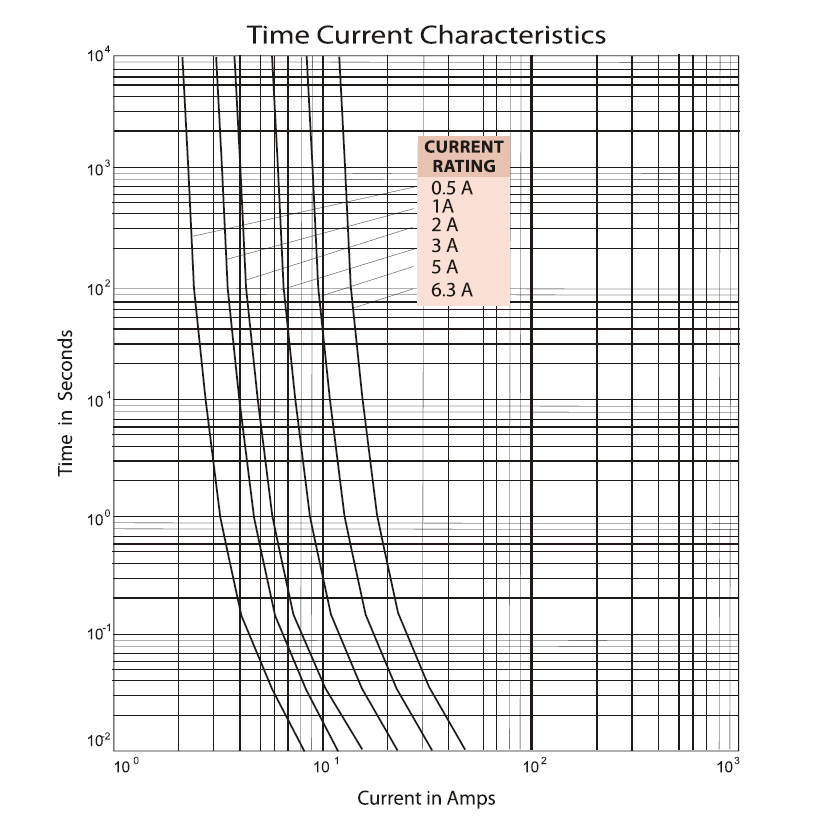

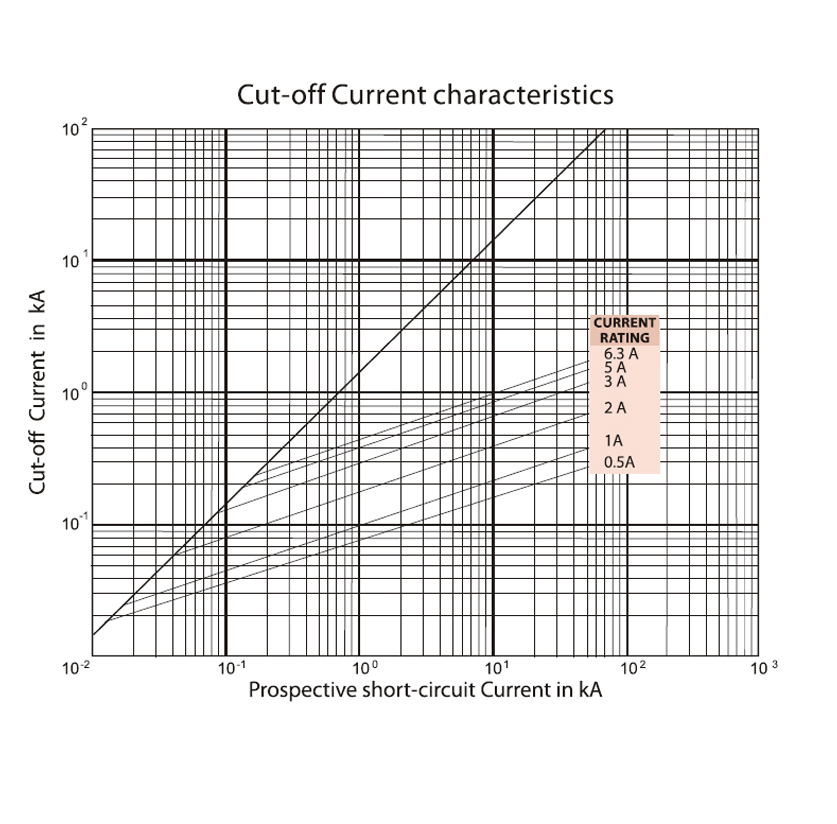

Graphs
Transformer Protection Fuses
ESWARI (ANAND) Fuses offers wide range of transformer protection fuses in accordance to DIN & BS standard. back up fuses are generally used for protecting transformer in the distribution network between 3.3 kv/3.6 kv to 33 kv/36 kv.These fuses are capable of breaking any fault current between the minimum breaking current (l3) and the rated breaking current (l1).selection of the fuse shall be made from the selection table and in accordance to the standards.

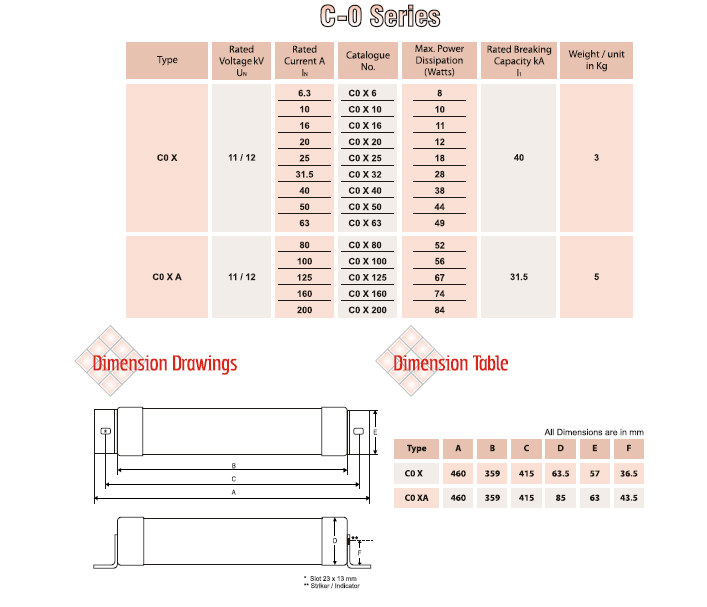

ESWARI (ANAND) Fuses range transformer protection are available in the following series,
NGT series:

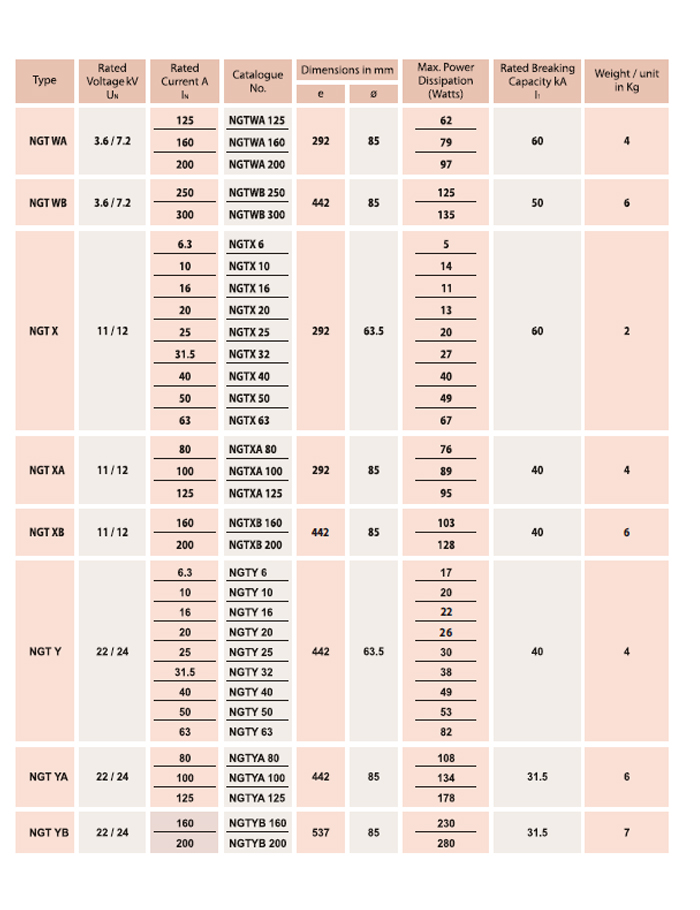

Comply with DIN 4325 of VDE 0670 T4 & IEC 60282-I standard they also offer safe interchangeability to any world standards.
C-O series:

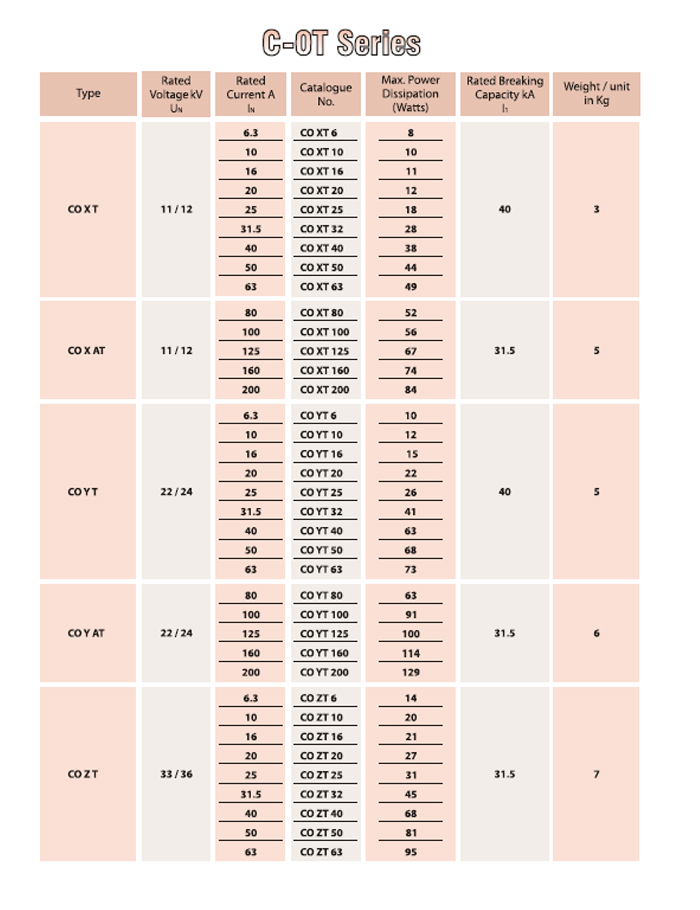

Comply with BS 2692 & IEC 60282-standard.Fitted with end tags for rigid bolt & Nut fixing .

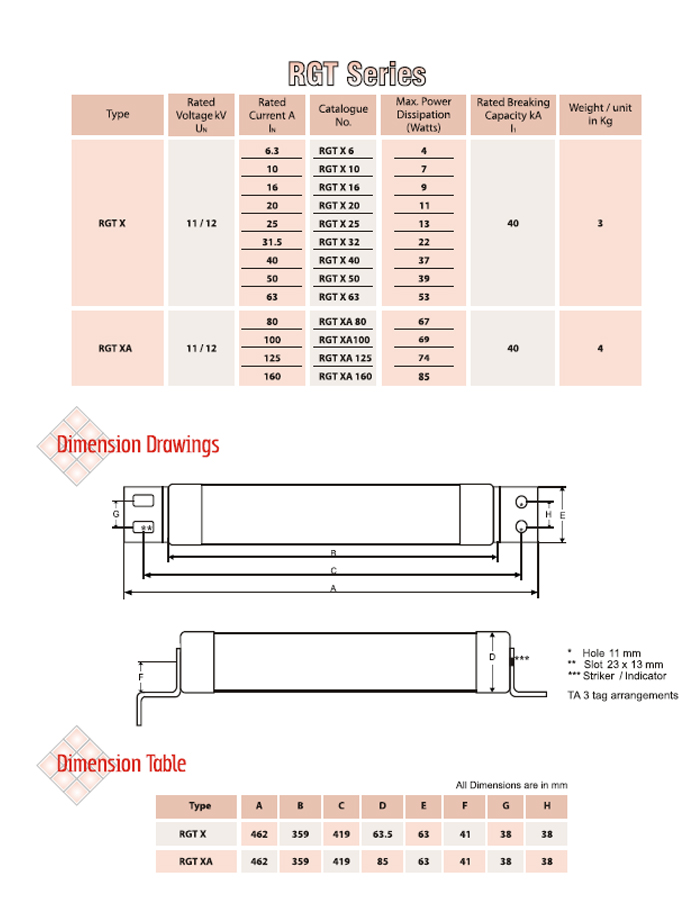

RGT series:
Fitted with TA3 Tag arrangement for rigid bolt & Nut fixing.
BHT series:

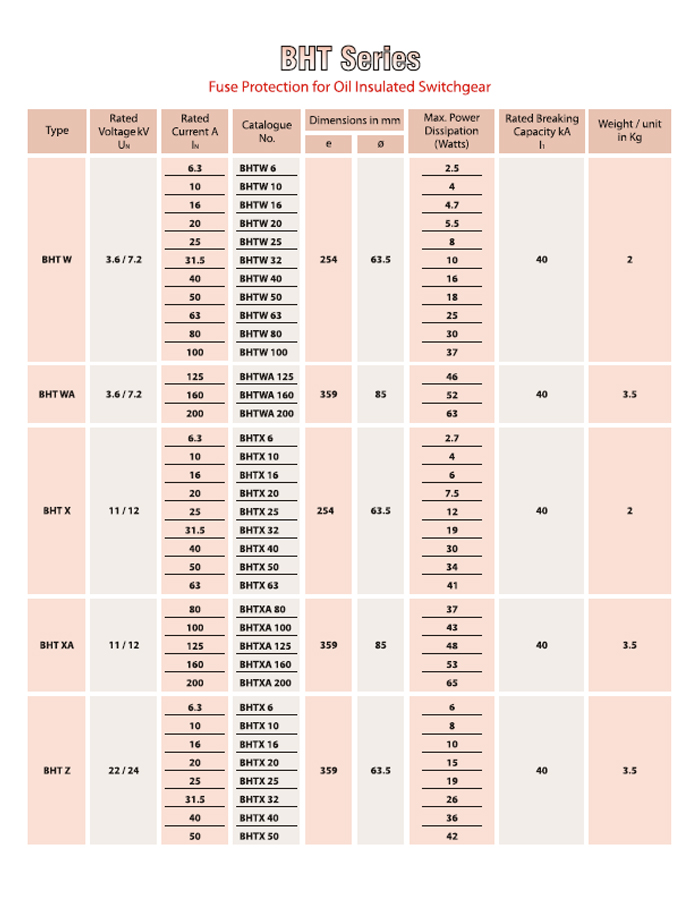

Comply with BS 2692 & IEC 60282-1 Suitable for installation in oil insulated (oil immersed) switchgear.
Fuse links with stud / screw type connections are also available.Custom fixing arrangements can also be provided .

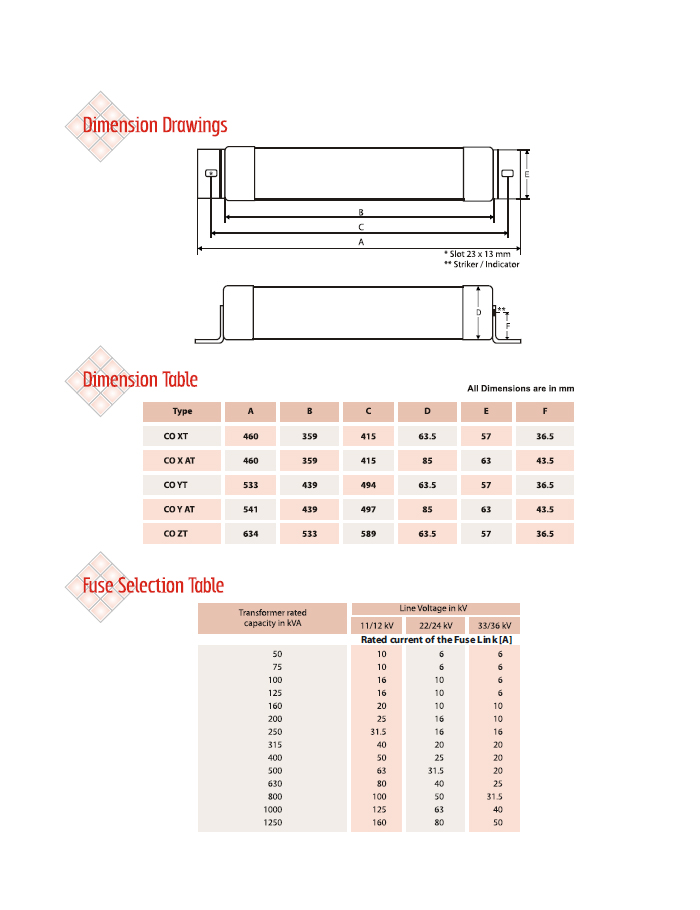

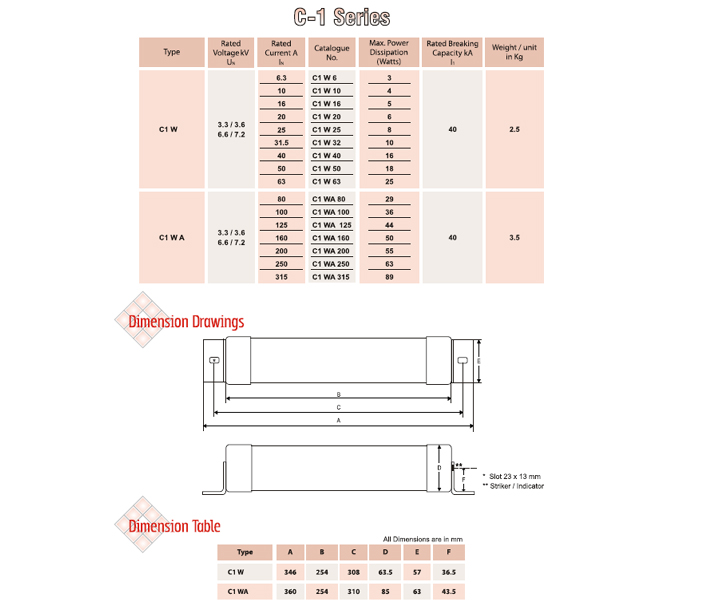

Dimension Drawings

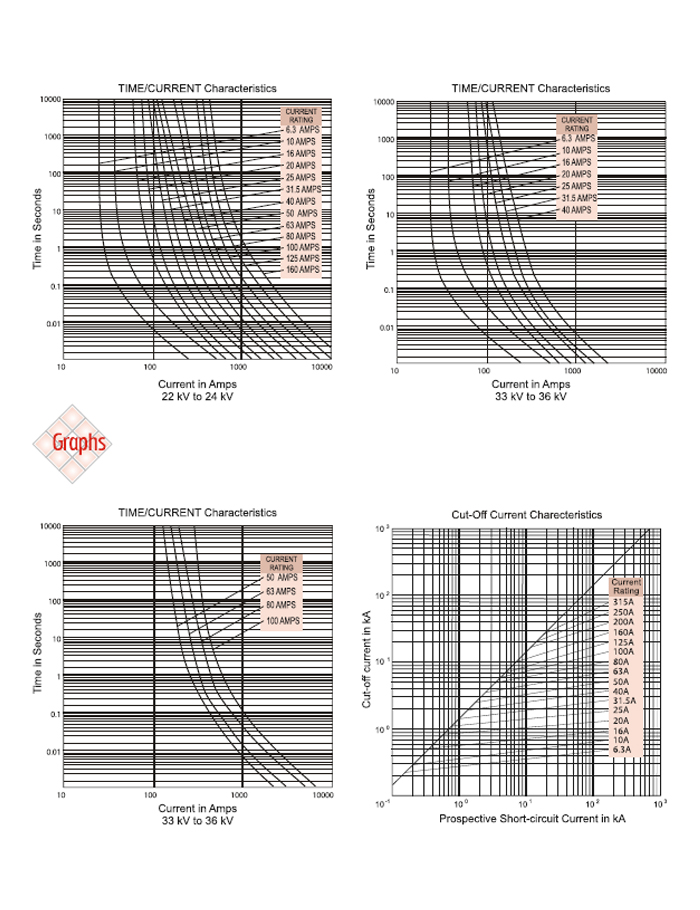

Graphs
Motor Protection Fuses

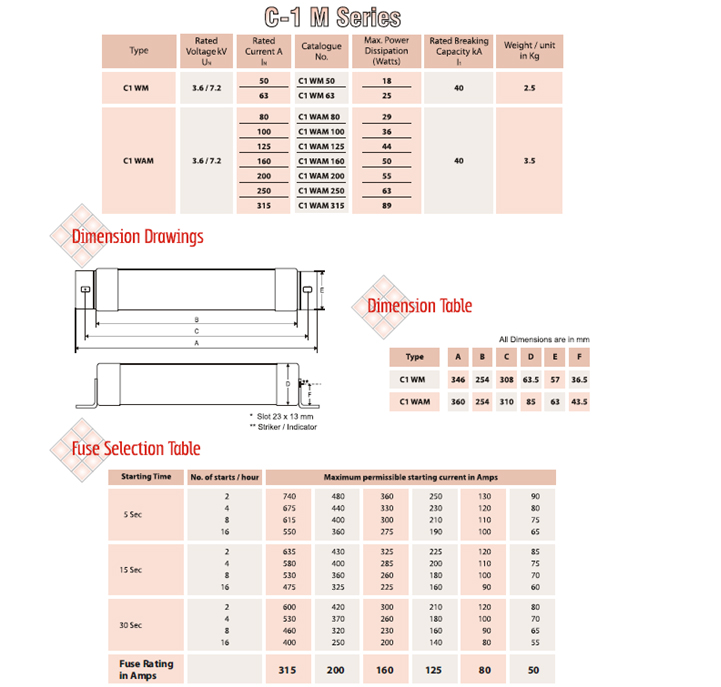

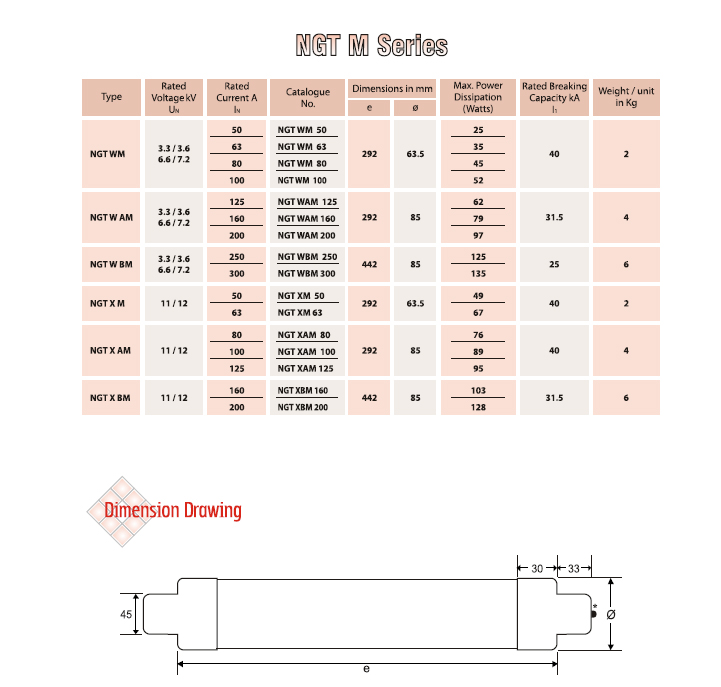

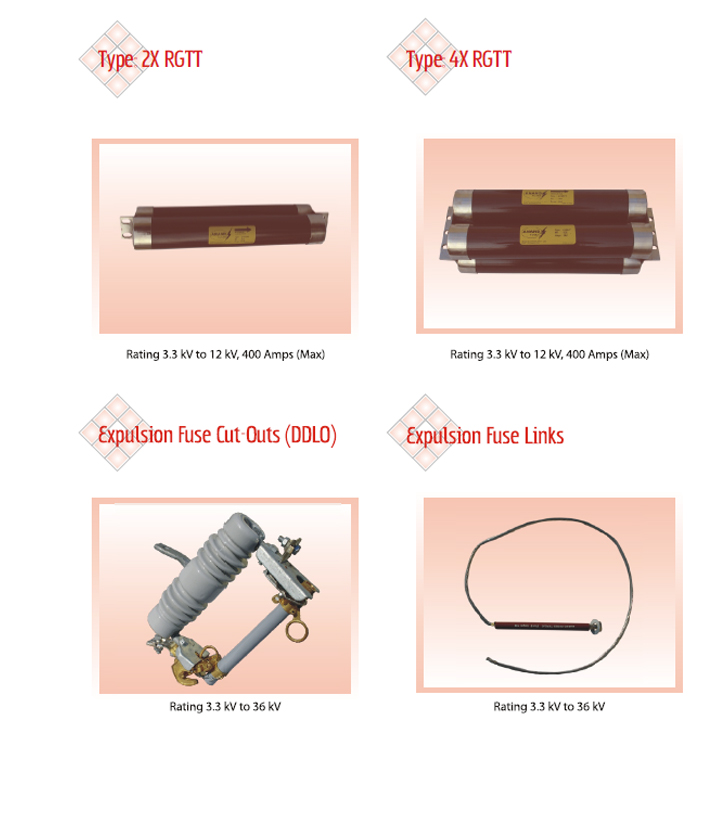

Type NGTT,RGTT & C1 (m),NGT (m) are specially designed for motor protection application They are suitable for both direct-on-line motor starting application and in conjuction with contactors for star/delta motor starting these fuses offer protection for the motor circuit from inadmissible high over current and incase of short circuit isolation takes place at the fastest given time the fuses are designed to withstand surges due to frequent starting of the motors.

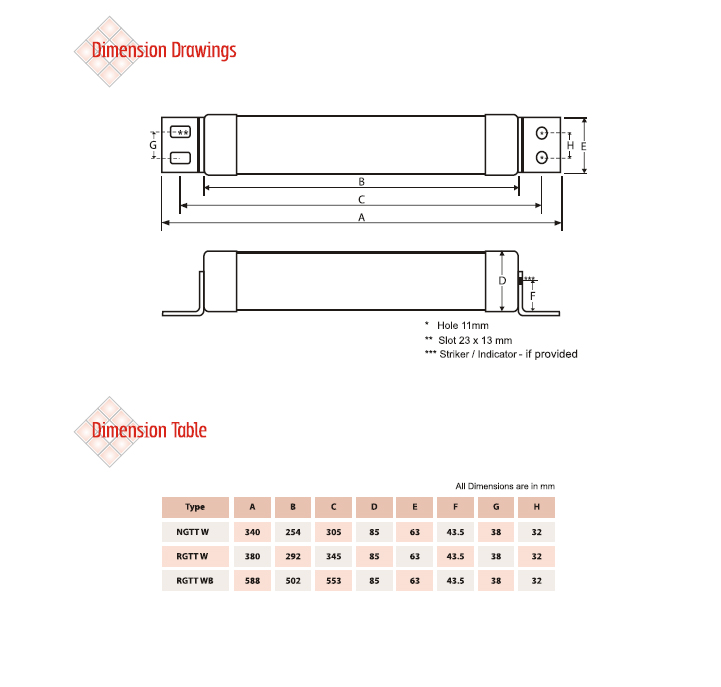

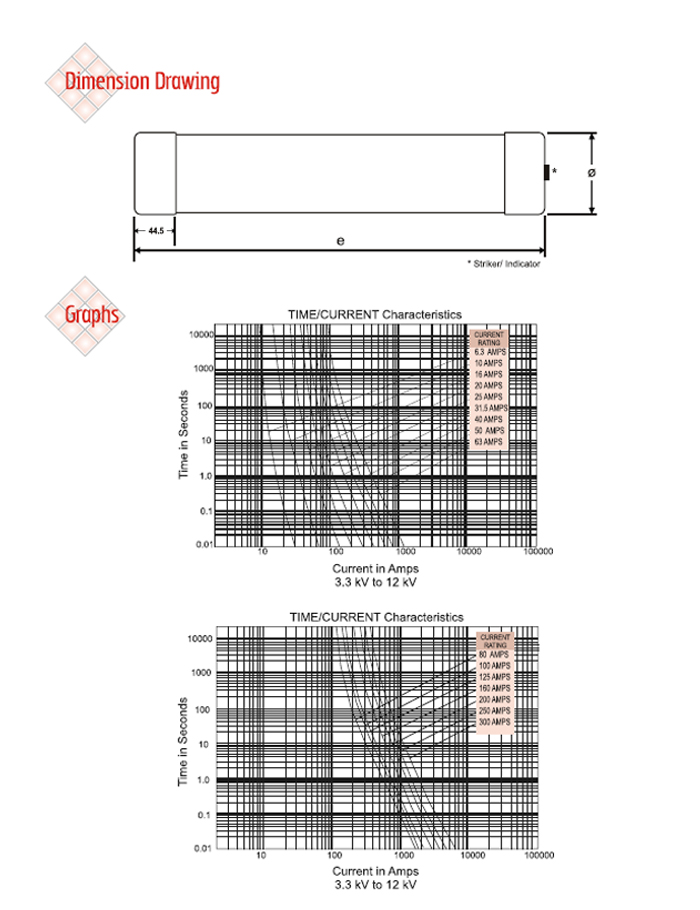

Dimension Drawings

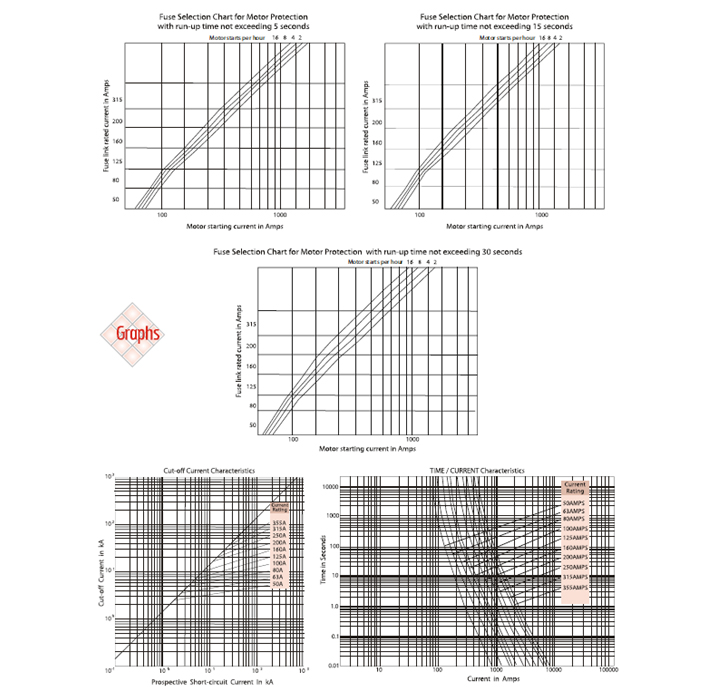

Graphs
Capacitor Protection Fuses
ESWARI(ANAND) Fuses offer excellent protection solution for capacitor connected networks an external fuse arrangement for capacitors & capacitor banks are necessary in order to ensure the system reliability and safety.The fuse selection shall be based on the following criteria like capacitor size short circuit level transient surge etc.fuses suitable for capacitors are available in ratting from 3.3 kv to 18 kv.The fuses are designed to suite for installation in both INDOOR & OUTDOOR
Dimension Drawings

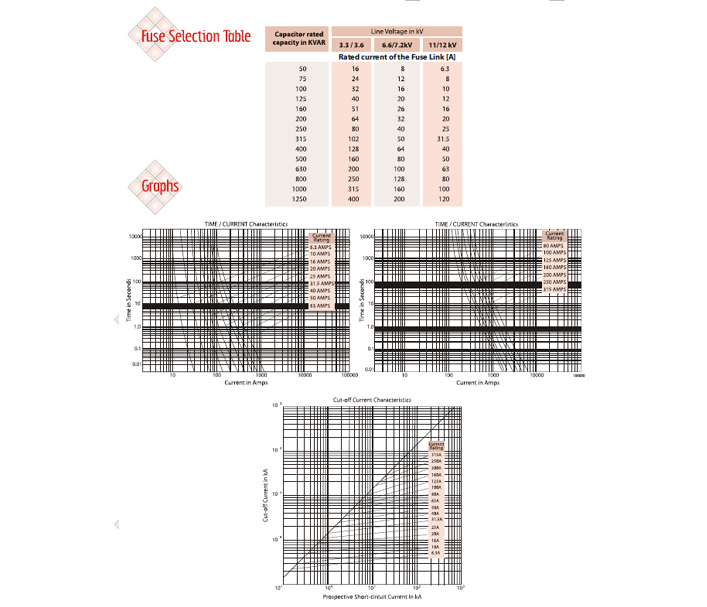

Graphs

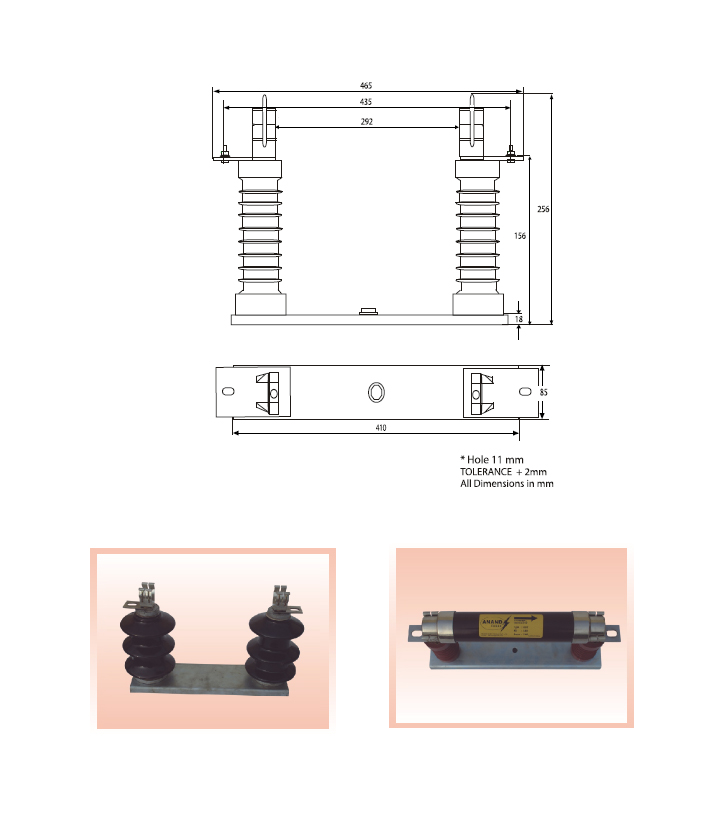

FUSE BASE
